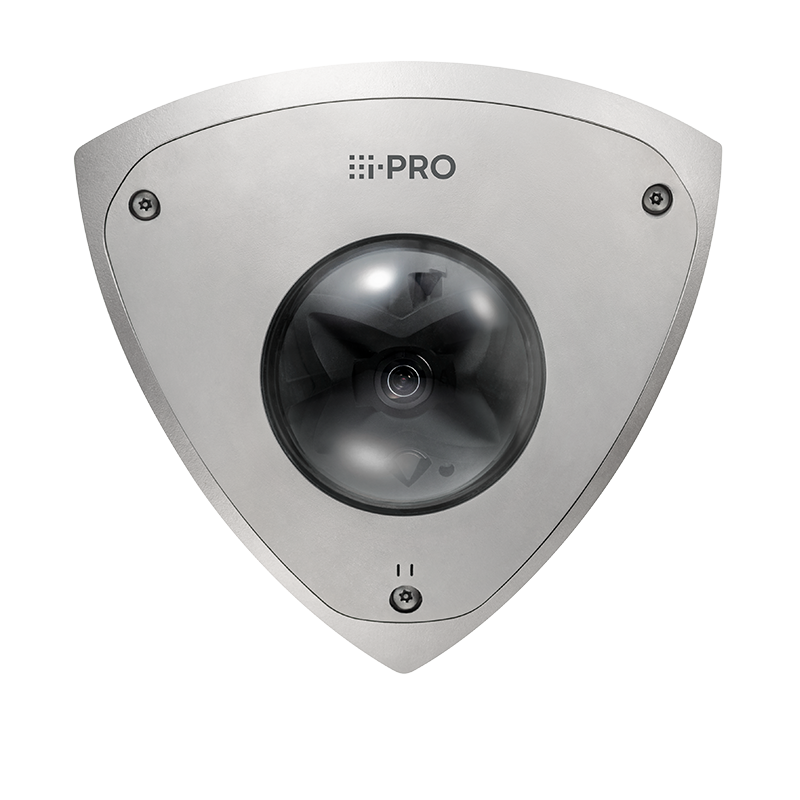

دوربین گوشه WV-X25580-F2LN2
کد IK درجه حفاظتی است که توسط محفظه های تجهیزات الکتریکی در برابر ضربه های مکانیکی خارجی ارائه میشود که تا (IK11 (50J در IEC 62262 تعریف شده است . از آنجایی که این محصول دارای مقاومت ضربه ای 70J است که از IK11 بیشتر است ، آن را به صورت (70J) + IK11 بیان میکنم.
دوربین 5 مگاپیکسل گوشه وندال با موتور هوش مصنوعی
- دوربین دام پاناسونیک 5 مگاپیکسل با قابلیت هوش مصنوعی
- مجهز به لنز ثابت 2.3 mm
- دارای گواهینامه استاندارد ضد ضربه و ضد آب بودن (IP66 , IP67 , IP69)+(IK11)
Camera
| COMPONENT | SPECIFICATION |
|---|---|
| Image Sensor | Approx. 1/2.8 type CMOS image sensor |
| Scanning Area | 5.12 mm (H) × 3.84 mm (V) {3/16 inches (H) × 5/32 inches (V)} |
| Minimum Illumination | Color : 0.08 lx (30IRE, F2.2, 1/30s, AGC:11)* 0.11 lx (50IRE, F2.2, 1/30s, AGC:11) 0.0069 lx (50IRE, F2.2, 16/30s, AGC:11)* BW : |
| White Balance | ATW1/ ATW2/ AWC |
| Shutter Speed | ー |
| Maximum Shutter | [30 fps/ 15 fps mode]
Max. 1/10000 s to Max. 16/30 s [25 fps/ 12.5 fps mode] Max. 1/10000 s to Max. 16/25 s |
| Intelligent Auto | On/Off |
| Super Dynamic | On/Off (Range : 0 to 31) |
| Dynamic Range | Max. 132 dB (Super Dynamic: On, Level: 31) |
| Adaptive Black Stretch | The level can be set in the range of 0 to 255. |
| Back Light Compensation/High Light Compensation | BLC (Back light compensation) / HLC (High light compensation) / Off (Range : 0 to 31) *only when Super Dynamic/ Intelligent Auto: Off |
| Fog Compensation | On/Off (Range : 0 to 8) *only when Intelligent Auto / Auto contrast adjust: Off |
| Maximum Gain (AGC) | The level can be set in the range of 0 to 11. |
| Color/BW (ICR) | Off/ On(IR Light Off)/ On(IR Light On)/ Auto1(IR Light Off)/ Auto2(IR Light On)/ Auto3(SCC) |
| IR LED Light | Maximum irradiation distance: 21 m {Approx. 69 ft} (30IRE)* 15 m {Approx. 49 ft} (50IRE) * Converted value |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Video Motion Detection (VMD) | On/ Off, 4 areas available |
| Scene Change Detection (SCD) | On/ Off, 1 area available |
| Audio Detection | On/ Off |
| AI Sound Classification | Selectable from Gunshot, Yell, Vehicle horn, Glass break |
| Analytics | AI Video Motion Detection, AI Privacy Guard, AI Face Detection, AI People Detection, AI Vehicle Detection, AI Non mask Detection (prior to V2.70), AI Occupancy Detection, AI Scene Change Detection
For details: |
| Max. Number of Applications | 3 |
| Privacy Zone | On/Off Up to 8 zones available |
| VIQS | On/Off Up to 8 zones available |
| Image Stabilizer | ー |
| Camera Title (OSD) | On/Off Up to 40 characters, Up to 2 lines (alphanumeric characters, marks) |
Lens
| COMPONENT | SPECIFICATION |
|---|---|
| Optical Zoom | 1x |
| Extra Zoom | max 4x (when resolution is 640 x 360) |
| Digital (electronic) Zoom | ー |
| Focal Length | 2.3mm {3/32 inches} |
| Angular Field of View | [16:9 mode]
Horizontal: 131°, Vertical: 70° [4:3 mode] Horizontal: 131°, Vertical: 95° |
| Adjusting Angle | Vertical (TILT) angle: -5°to +5° Azimuth (YAW) angle: ±5° |
| Maximum Aperture Ratio | 1:2.2 |
| Focus Range | 0.5m {1/32 inches} – ∞ |
| Aperture Range | F2.2 |
DORI
| COMPONENT | SPECIFICATION |
|---|---|
| Detect (25ppm / 8ppf) | 23.3m {76.6 ft} |
| Observe (62.5ppm / 19ppf) | 9.3m {30.6 ft} |
| Recognize (125ppm / 38ppf) | 4.7m {15.3 ft} |
| Identify (250ppm / 76ppf) | 2.3m {7.7 ft} |
System on Chip
| COMPONENT | SPECIFICATION |
|---|---|
| System on Chip (SoC) | Ambarella CV22 |
Browser GUI
| COMPONENT | SPECIFICATION |
|---|---|
| GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Browser *1 | Microsoft Edge Firefox Google Chrome |
Network
| COMPONENT | SPECIFICATION |
|---|---|
| Network IF | 10BASE-T/100BASE-TX, RJ45 connector |
| Resolution | [16:9 mode ( 30fps mode )] [16:9 mode ( 25fps mode )]
3072×1728／2560×1440／1920×1080／1280×720／640×360／320×180 [4:3 mode ( 30fps mode )] [4:3 mode ( 25fps mode )] 3072×2304／2560×1920／1280×960／800×600／VGA／400×300／QVGA |
| H.265/H.264 Transmission Mode/Type | [Transmission Mode]
Constant bit rate/ VBR/ Frame rate/ Best effort [Transmission Type] Unicast port (AUTO)/ Unicast port (MANUAL)/ Multicast |
| No. of Stream | 4 |
| JPEG (MJPEG) Image Quality | 10 steps: 0(SUPER FINE) – 9(LOW) |
| Smart Coding | [GOP(Group of pictures) control]
Off/ Low (Variable GOP 1s-8s)/Mid (Variable GOP 4s-16s)/ Advanced (Fixed GOP 60 seconds with 1 second Key frame)/ Frame rate control (Variable GOP 4s-16s with frame rate control) *Advanced and Frame rate control are only available with H.265. [Smart VIQS] On (High)/ On (Low)/ Off [Smart P-picture control] On/Off |
| Audio Compression Method *2 | G.726 (ADPCM): 16 kbps/ 32 kbps G.711: 64 kbps AAC-LC: 64 kbps/ 96 kbps/ 128 kbps |
| Audio Transmission Mode | Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex) |
| Supported Protocol | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| Secure | FIPS 140-2 level 3 (NXP® EdgeLock® SE050F), Device Certificate GlobalSign® pre-installed, HTTPS, User authentication, digest authentication, Host authentication, IEEE802.1X, System log, Image transmission log, brute-force protection, Alteration Detection, Signed firmware |
| SDXC/SDHC/SD Memory Card (Option) | microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB microSD memory card: 2 GB |
| Mobile Terminal Compatibility | iPad / iPhone (iOS 8.0 or later), Android™ terminals |
| ONVIF®Profile | G / S / T / M |
Alarm
| COMPONENT | SPECIFICATION |
|---|---|
| Alarm Source | 3 terninals input, VMD alarm, SCD alarm, Command alarm, Audio detection alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, TCP alarm notification output |
Input/Output
| COMPONENT | SPECIFICATION |
|---|---|
| Built-in Microphone | Nondirectional electret condenser microphone (removable) |
| Audio Input*3 | ø3.5 mm stereo mini jack |
| Audio Output*3 | ø3.5 mm stereo mini jack (Audio output is monaural.) Output impedance: Approx. 600 Ω (unbalanced) Output level: -20 dBV |
| External I/O Terminals*3 | ALARM IN1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1) ALARM IN2 (Alarm input 2/ ALARM OUT) (x1) ALARM IN3 (Alarm input 3/ AUX OUT) (x1) |
| Monitor Output | Yes (for monitoring) Pin jack, NTSC or PAL signal can be output from camera |
General
| COMPONENT | SPECIFICATION |
|---|---|
| Safety | UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1 |
| EMC | FCC (Part15 ClassA), ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035 |
| Power Source/Power Consumption | [Power Source]
DC12 V PoE (IEEE802.3af compliant) [Power Consumption] DC12 V ：1.1A／ Approx. 12.6W PoE DC 48 V ：240mA／ Approx. 11.5 W（Class 0 device) |
| Ambient Operating Temperature | -40 °C to +55 °C {-40 °F to +131 °F} (Power On range: -20 °C to +55 °C {-4 °F to +131 °F}) * When using with the IR LED light constantly lit, the upper limit of the operating temperature range is +50 °C {+122 °F}. |
| Ambient Operating Humidity | 10 % to 100 % (no condensation) |
| Water and Dust Resistance | IP69/ IP66/ IP67 (IEC 60529), Type 4X (UL50E), NEMA 4X compliant, IP6K9K (ISO 20653) compliant |
| Shock Resistance | IK11(IEC62262), 70J* *Tested for 70J impact resistance according to the IEC 62262 test method |
| Wind Resistance | Up to 40 m/s {approx. 89 mph} |
| Dimensions | 197x128x138 mm (7-3/4inces(W) x 5-1/32inches(H) x 5-5/16inches(D)) |
| Mass (approx.) | 1.9kg {4.19lbs} |
| Finish | Main body: Stainless(Silver) + Aluminum die cast(Black paint) Dome cover: PC resin, Clear(with ClearSight coating) |
| Easy Kitting | Supported |
